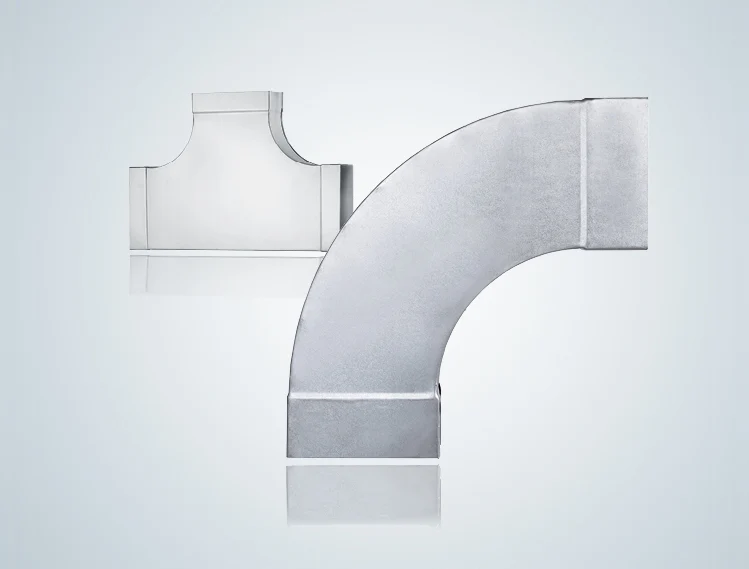

Flat Duct System

Flat Duct System Image Text

The small duct component program enables flexible, space-saving assembly in walls, floors, and ceilings. The range of dimensions and designs has been selected so that very good adjustment to the required air volumes is obtained and zeta values/current losses are as low as possible.

  • galvanised steel plate
  • stainless steel and aluminium upon request
  • dimensions from 40/100 mm to 80/200 mm
  • lengths 1,000 mm to 2,000 mm
  • sealed designs possible
  • certified in accordance with VDI 6022

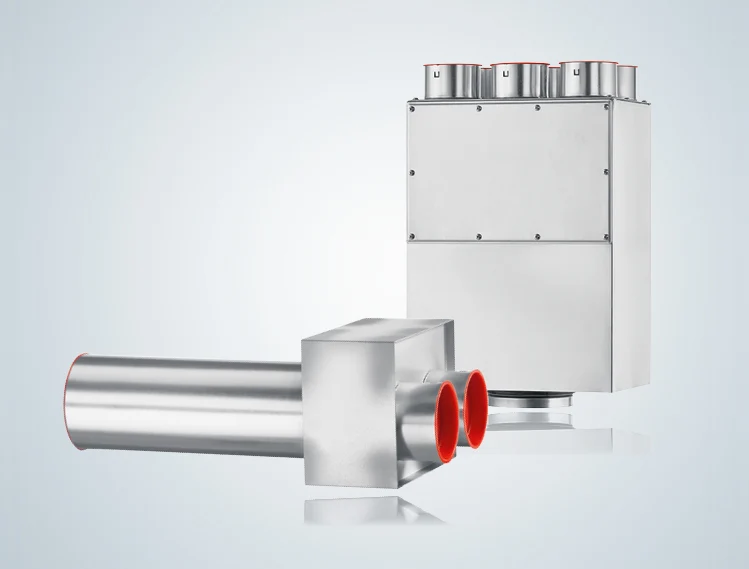

Components for flexible pipework

Flexible Pipework Image Text

Our components for flexible pipework offer an ideal solution for combining all common duct systems. The self-sealing connecting pieces allow fast and easy assembly of flexible pipes without requiring any additional sealing by means of gaskets.

  • galvanised steel plate
  • stainless steel and aluminium upon request
  • standard dimensions from DN 80 to DN 355
  • flat duct dimensions from 40/100 mm to 80/200 mm
  • connection for flexible pipes DN 63 to DN 75
  • certified in accordance with VDI 6022

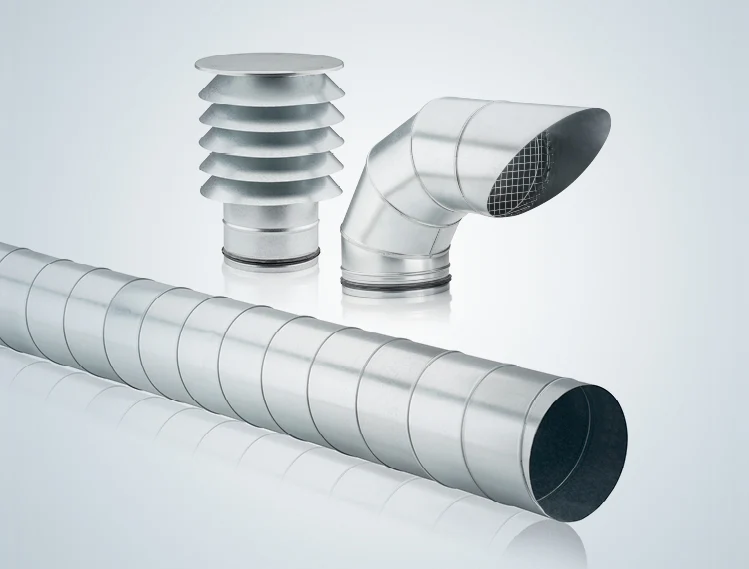

Ventilation pipes and fittings

Lüftung rund Image Text

Our round ventilation system enables the robust and reliable exchange of supply, exhaust and fresh air. They thus ensure optimal air circulation in business, manufacturing and work halls.

  • Galvanized steel sheet
  • Stainless steel on request
  • Dimensions: DN 80 - DN 355
  • Spiral ducts up to 3m in length
  • Other sizes on request
  • All molded parts with lip seals
  • Certified according to VDI 6022
